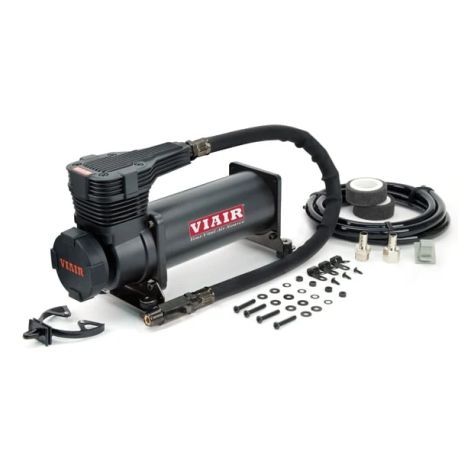

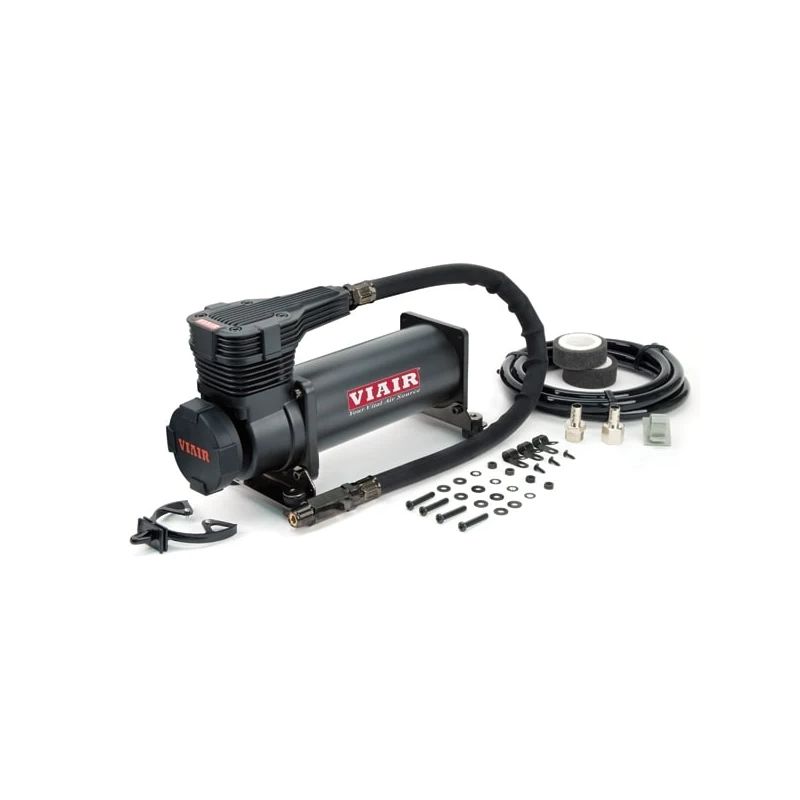

Viair 485C compressor - 200PSI - Black

The Viair 485C Gen 2 Compressor delivers high-performance air for industrial and automotive applications. Rated up to 200 psi (13.8 bar) with a 100% duty cycle, it can run for 1 hour at full pressure before needing rest, providing reliable, consistent air delivery.

Engineered for durability and quieter operation than standard compressors, the 485C features a permanent magnetic motor, thermal overload protection, and IP67-rated components. Compact and versatile, it’s easy to mount and includes all the necessary accessories for installation.

Specifications:

• Voltage: 12 V (tested at 13.8 V)

• Max Working Pressure: 200 psi (13.8 bar)

• Duty Cycle: 100% @ 200 psi (1-hour max run time)

• Max Air Tank: 5 gal (18.9 L)

• Max Amp Draw: 23 A

• Ingress Protection: IP67

• Ambient Temp Range: –40 °C to +70 °C

• CFM: 2.24 @ 0 psi

• Dimensions: 270 mm L × 104 mm W × 163 mm H

• Net Weight: 5 kg

Included in the Box:

• 485C Compressor (Platinum or Stealth Black)

• Air filter assembly with removable cover

• Replacement filter elements

• Remote mount filter assembly

• Leader hose clip and air line clips with hardware

• Mounting hardware

• Stainless steel braided leader hose with inline check valve

• Air line for remote mount filter installation

A reliable choice for air suspension or onboard air systems, the 485C Gen 2 offers fast fills, consistent performance, and quieter operation in a compact, durable package.
