Product Description:

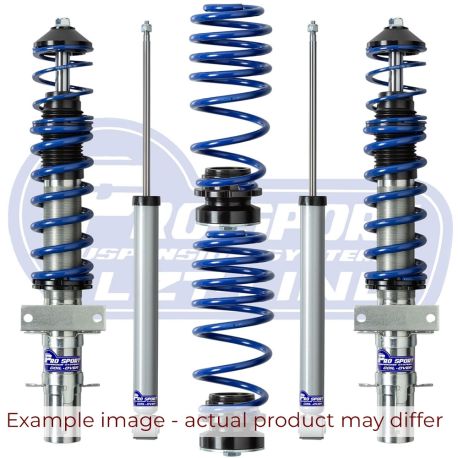

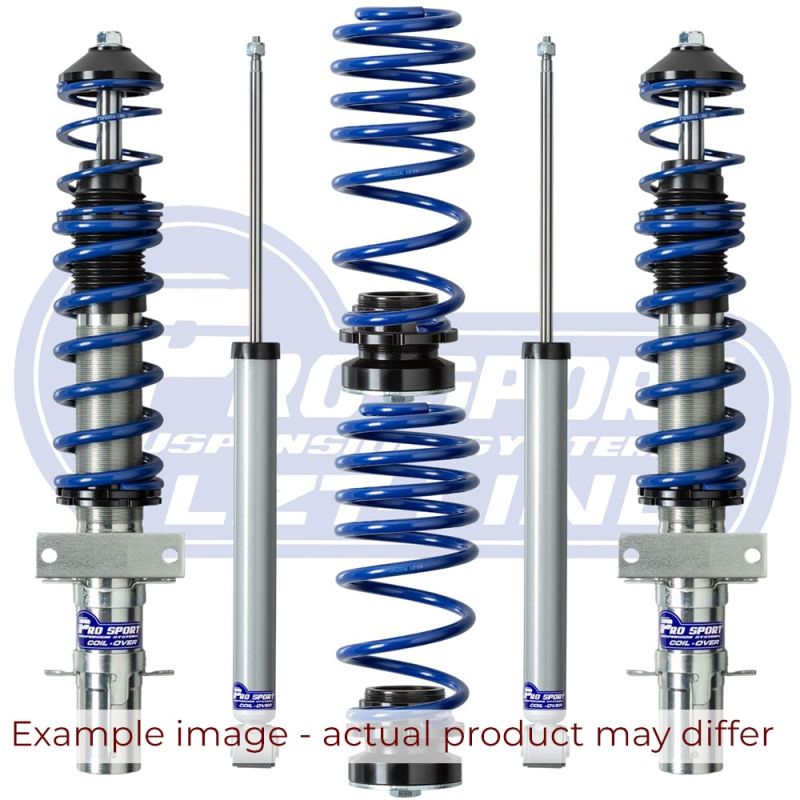

Prosport Coilovers for VW Transporter T5 T26/T28/T30

Key Features:

Zinc-plated coilover struts for a quality finish with enhanced corrosion protection.

Blue Powder-Coat finish on the springs.

Progressively wound front and rear springs.

All-metal ride height adjusters

Engineered to give the best balance between firmly controlled handling and comfort.

Fits:

This Prosport Coilover Kit will fit these VW Transporter T5 T26/T28/T30 models made from 2003-2009:

2.0 / 1.9 TDI / 2.5 TDI / 3.2 V6

Includes Kombi* Shuttle* Caravelle* & 4-Motion models. Not suitable for T32. * Check front strut lower fitting if one of these models - some are fitted with T32 type mounting.

Lowering Range:

Front: 45-75mm

Rear: 45-70mm

Product Specifications in Detail:

Front Shock Absorber Type: Twin-Tube with pressurised gas

Rear Shock Absorber Type: Twin-Tube with pressurised gas

Front Spring Type: Progressively wound

Rear Spring Type: Progressively wound

Maximum Front Axle Load: 1710kg

Maximum Rear Axle Load: 1720kg

Zinc plated front Coilover units silver coated rear shock absorbers

Blue EPS Powder Coating on the springs

Alloy adjustment and lock rings on the Coilover Units

All metal rear height adjusters with anodised finish

Good to Know:

These Prosport Coilovers are designed to fit on to the standard (OEM) top mounts.

No additional parts needed for installation of this Prosport Coilover Kit.

TUV Quality Certification.

1 year warranty.

We recommend having the suspension geometry checked and adjusted after fitting these Coilovers.

To ensure both optimum performance and reliability always keep within the lowering range shown above.

Vehicles with factory-fitted sport suspension will lower by less than the stated figures

In the box:

Front Coilovers x2

Rear lowering springs coupled with ride height adjusters x2

Uprated & Shortened Rear Shock Absorbers x2

Tools for setting ride height

Kit Number: 150182
