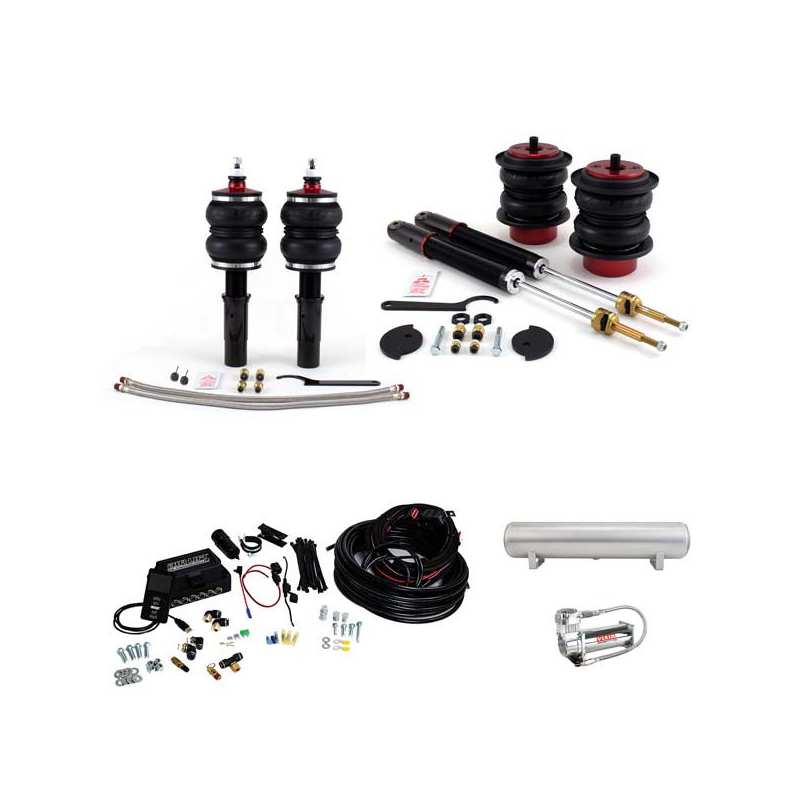

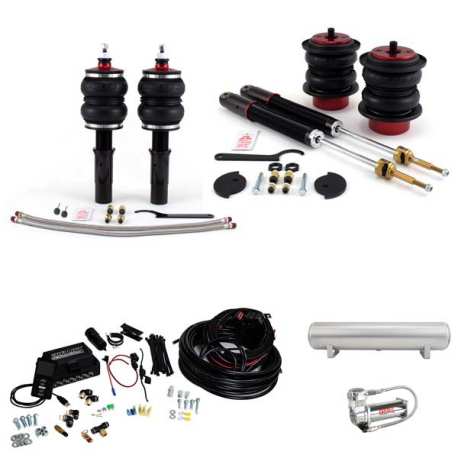

Air Lift 3P Combo Kit: Audi S5 B8 2009-2013

Air Lift 3P Combo Kit: Audi S5 Quattro 2009-2013

ALP3P-95758

Options

Front kit

Rear kit

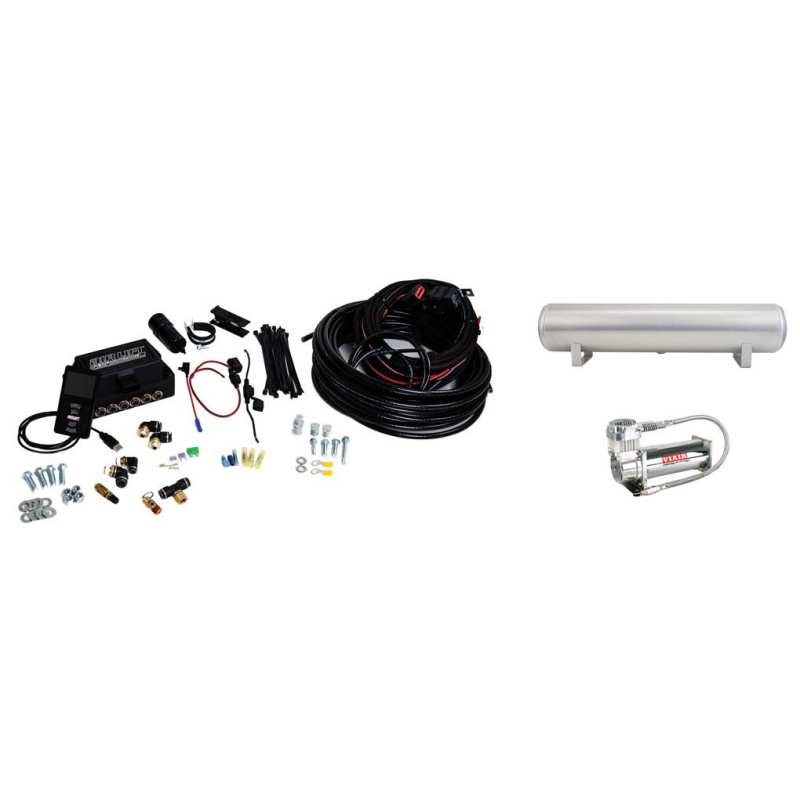

Management

Compressor

Tank

Allow 10-14 days for delivery

Interest Free Finance Available

Spend £500.00 or more to qualify for 0% Interest Finance.
Only available to UK residents over 18, subject to terms and conditions.

£0.00 inc. VAT

Specifications

Manufacturer Air Lift
Type Combo Kit
Vehicle Make Audi
Vehicle Model S5
Date Range 09-13

Drive it. Show it. Track it.

Air Lift Performance Suspension:
Comfortably drive your car daily and clear speed bumps, park up and slam it to the ground, or take it to the track. All with the touch of a button.

Air Lift Slam Series Suspension:
Simple, economical air suspension. Offers practical ride height and jaw dropping lows.  Front kits generally offer fixed rate dampers without height or camber adjustment, and rear kits are generally supplied without dampers to keep the costs down.

Air Lift Performance strut

Damping Adjustment

With Air Lift’s large range of available damping,
you can always find a setting to suit your needs.

Geometry Adjustment

Many of Air Lift's front kits provide camber adjustable
top mounts.

Threaded body Adjustment

Air Lift Performance kits have threaded body dampers, meaning the height can be preset at the suspension as well as at the controller, enabling you to dial in the perfect stance, whatever your needs.

Bolt in setups

Most kits use OEM mounting points, so there is no need to modify your car.

1 Year Warranty

Air Lift stand by their products and offer a 1 year warranty.
Replacement parts are also available on request.

Additional hardware

Many kits come with additional hardware required to complete the installation, such as drop links, control arms and adjustment tools.

Pressure Only

Height + Pressure

3P and 3H

Air Lift's two flagship management systems are the 3P and 3H. The two systems are fundamentally the same, however there are a couple of major differences.

The 3H comes with height sensors, allowing auto levelling. As such it tends to be more accurate when it comes to hitting ride heights.
The 3P can be upgraded to a 3H system by adding a height sensor kit at any time.

Features (both systems)

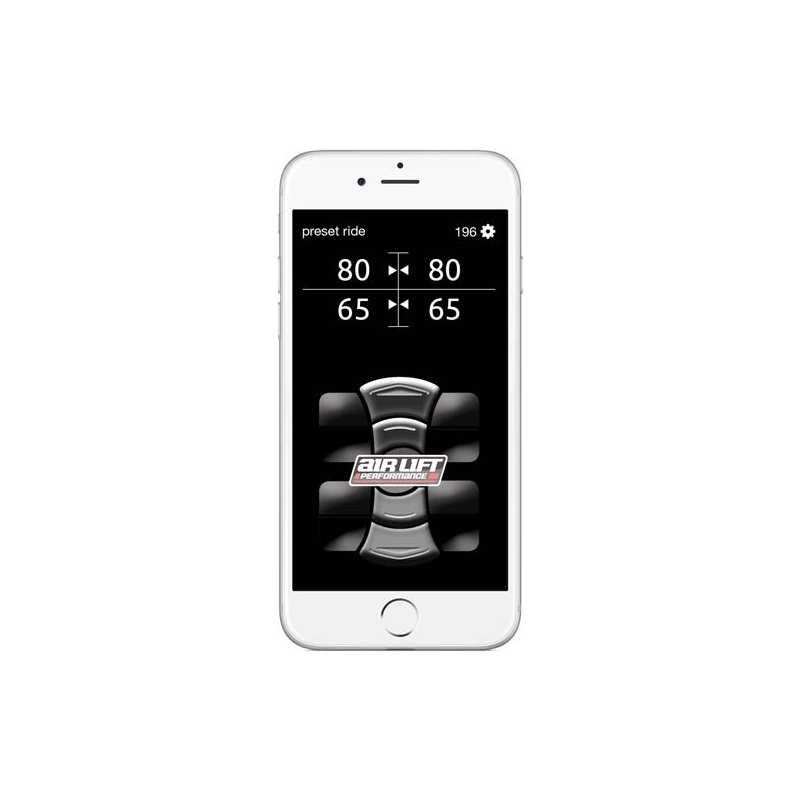

  • Smartphone control - free app, no additional hardware needed.
  • 5 customisable presets, as well as manual adjustment for all 4 corners
  • Rise on start
  • High grade, OEM level components
  • State of the art 32-bit processor
  • Single harness connection for a very easy installation

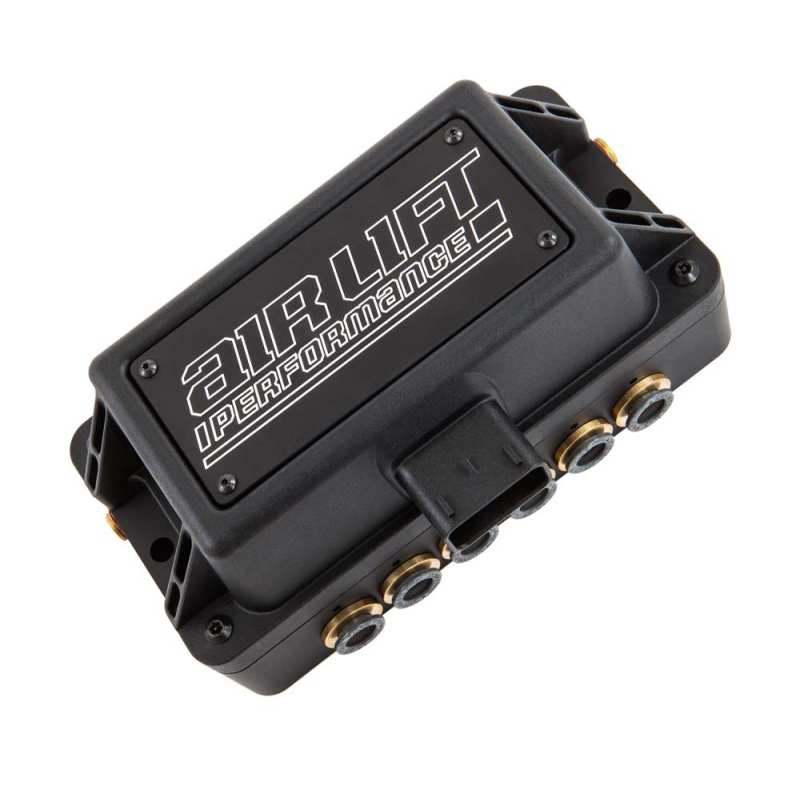

  • Fully integrated manifold includes ECU, pressure sensors and Bluetooth module in one unit
  • Show mode - park up, switch off and still control your system.
  • 2 year limited warranty

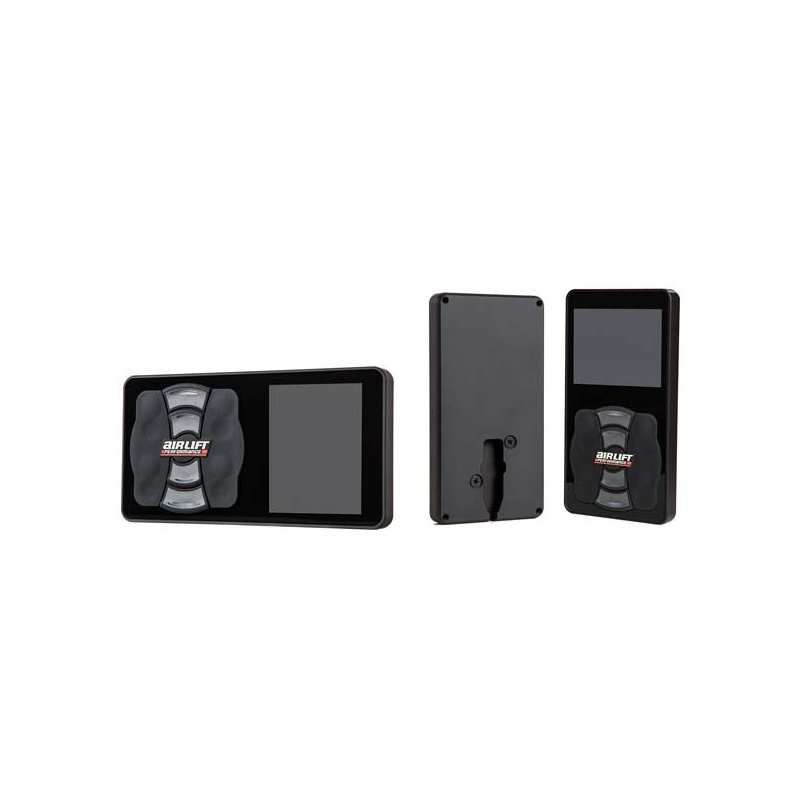

Air Lift 3P controller

Features (3H Exclusive)

  • Height sensing technology gives the system the ability to adapt to changes in vehicle load
  • Anti cross loading and axle equalisation - ensures the vehicle achieves the correct height without radical differences in pressure



Entry Level Management System

3S from Air Lift

The 3S is a cost effective management system, designed to work with the Air Lift Performance smart phone app (or optionally with a physical controller sold separately).  This kit does not have pressure or height sensing abilities, however it does offer 1/8NPT ports for adding external pressure gauges.  It also offers 3 customisable presets, which are time based.
Please note that while the manifold looks similar, this system can not be upgraded to the 3P or 3H version.

The 3S wouldn't be our first choice for management systems, however when run with pressure gauges, it does have significant advantages over the 4-way manual system.

Air Lift 3S

Features

  • Smartphone control - free app, no additional hardware needed.
  • 3 presets - time based adjustment
  • Connection ports for adding external pressure gauges.
  • Optional controller upgrades available.
  • Single harness connection for a very easy installation
  • Fully integrated manifold
  • Show mode - park up, switch off and still control your system.
  • Lifetime limited warranty

4-way Manual Management System

Economical and simple, yet accurate and effective control for front, back and side to side adjustment using paddle valves. Gauges included.

  • Economical, simple and accurate control for all 4 wheels
  • Great for use with gauge and pillar pods
  • The system provides a maximum pressure of 175 psi
  • Features a VIAIR 100% duty cycle 444C Compressor
  • 1/4″ air line for accurate and smooth adjustment
  • Attractive stainless steel switch plate

THIS KIT INCLUDES:

  • Viair 444C Chrome Continuous Duty Compressor (or other options)
  • 4 Gallon Raw Aluminum Tank
  • Air Line
  • Two Dual-Needle Pressure Gauges
  • 4 Paddle Valves
  • Air Fittings
  • Air Line Cutter
  • Everything needed for installation!

Tailored For You

Packages can be built to suit your individual requirements.  You can select a different compressor package or tank to suit your needs.

Air Tanks

The bigger the tank, the more air you have to play with.  But check your available space first as some of the larger tanks won't fit in some cars!  A larger tank will often benefit from a larger (or second) compressor to cope with the increased volume it has to fill.

Compressors

The bigger the compressor, the faster your tank will refill.  Some example fill rates are below.  Opt for a dual compressor system to really maximise your system.

Note:  If running dual compressors, additional wiring is required.  Air Lift offers a second compressor harness to make the job much easier on their digital management systems, this is available separately from us.

‘Viair

Even More Options?

If you don't see the package you're looking for, please don't hesitate to get in touch and discuss your requirements.
